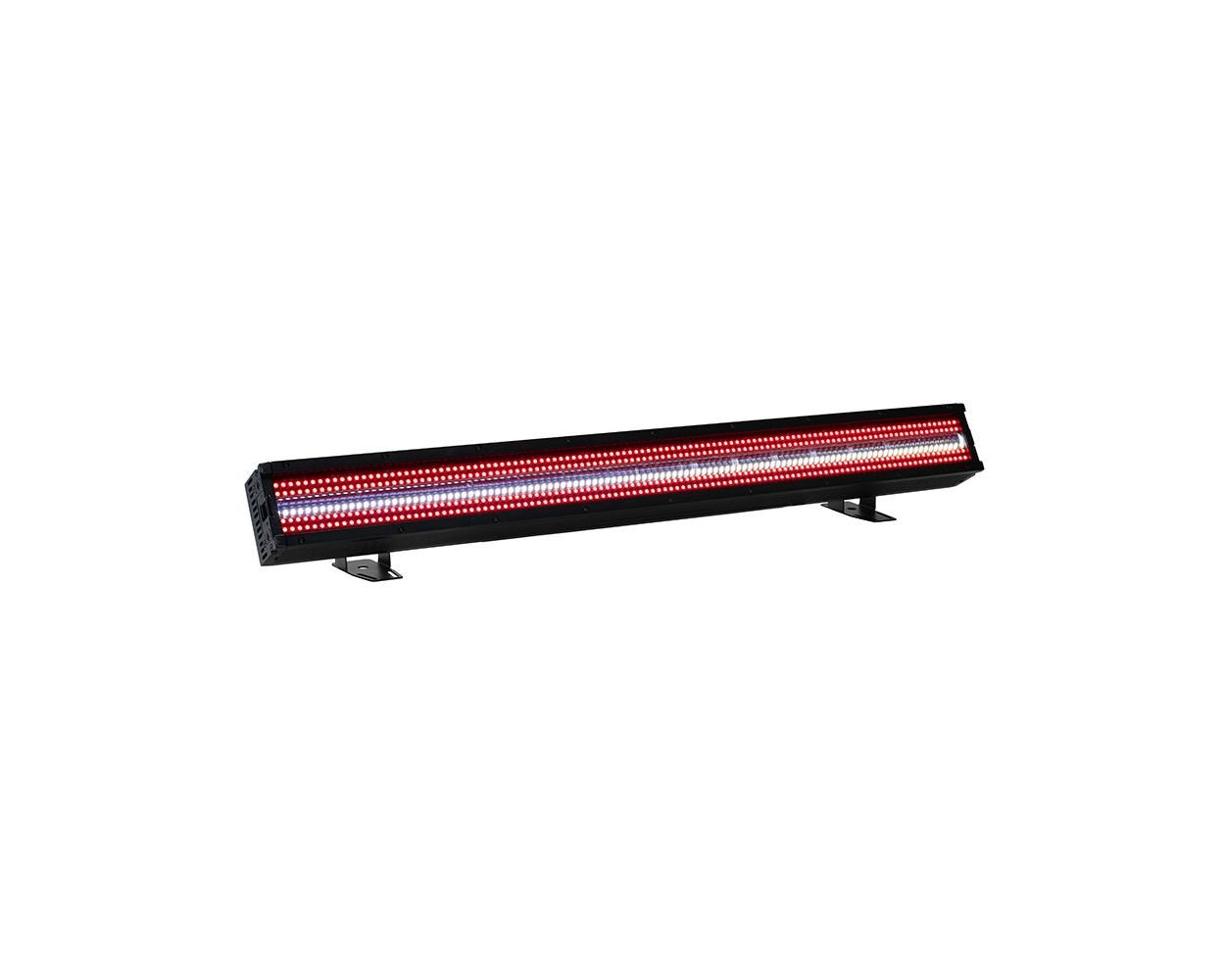

ADJ Jolt Panel FXIP

DescriptionLight Source:• 800 x 0.5-Watt RGB SMD LEDs 48 x 5-Watt Cool White SMD LEDs• 73° Beam Angle• 111° Field Angle• RGB LED Specs: Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm• White LEDs CCT: Typical 7400K (Min 6900 – Max 8000), 472nm• CRI: 69.4• 50,000 Hour Average LED Life Features:• 40 x RGB LED zones (126, 141 and 143 ch modes)• 6 x Cool White LED zones (51, 81, 83, 126, 141 and 143 ch modes)• 67 Built-In Color Temperature Presets (2300K-8900K) • 25 built-in RGB LED Program Macros• 9 built-in Cool White LED Program Macros• Integrated Aria X2 Management Suite• Channel for Light Shaping Filters (to Blur Pixel Dots)• Includes Frost Lens Filter • Built-in Receivers to Connect an Omega Bracket (sold separately)Control:• Control Protocol: DMX, Aria X2 and RDM• 14 DMX Modes: 6, 9, 13, 18, 20, 36, 41, 43, 51, 81, 83, 126, 141 and 144 channel modes  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)• 0-100% Smooth Dimming• Strobe: Ramp Up / Down, Lighting and Random• Max Strobe Rate 20Hz. Min Strobe Rate: 1Hz.• Selectable LED Refresh Rate: 900Hz – 25kHz• With Wired Digital Communication Network• Display: OLED display with 4-button touch menu Connections:• Data: IP65 Locking 5-pin DMX In/Out• Power: IP65 Locking Power In/Out  Electrical:• 100-240V 50Hz/60Hz (Auto Sensing)• Max Power Consumption: 214W @120V; 208W @230V• Max Power Link: 6pcs @120V; 12pcs @230V• Fuse Protected: T5A/250V Glass Fuse (5*20MM) Dimensions / Weight:• Length: 16.4″ (417mm)• Width: 110” (280mm)• Height: 8.4” (213mm)• Weight: 20.1 lbs. (9.1kg) What’s Included:• 1 x IP65 Locking Power Cable• 1 x Frost FilterOptional Accessories:• 180mm Omega Bracket• JPFXBLKF (Sku: JPF001 – Black Filter for Jolt Panel FX2 and Jolt Panel FXIP)• JPFX1X60LF (Sku: JPF014 – 1×60° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)• JPFX60X1LF (Sku: JPF027 – 60X1° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)Approvals and Ratings:• CE• cETLus Approved (Control # 4010765)• IP65Specifications are subject to change without notice.
